Description
ACE10 Collaborative Robot Arm
Welcome to the ACE10 collaborative robot arm, a high-performance and versatile industrial robot that is perfect for a wide range of applications. With a payload capacity of 10kg, a reach of 1400mm, and 6 rotational degrees of freedom, the ACE10 is capable of handling even the most complex tasks with ease.
Advanced Features for Improved Productivity of ACE10 Collaborative Robot Arm
The ACE10 is equipped with advanced features that make it a top choice for industrial automation. It boasts a repeatability of ±0.05mm, ensuring precise and consistent performance every time. Its axis movement ranges and maximum speeds are also impressive, with a working range of ±175° and a maximum speed of ±180°/s for all six axes. The ACE10 is also equipped with a harmonic speed reducer for smooth and efficient operation.

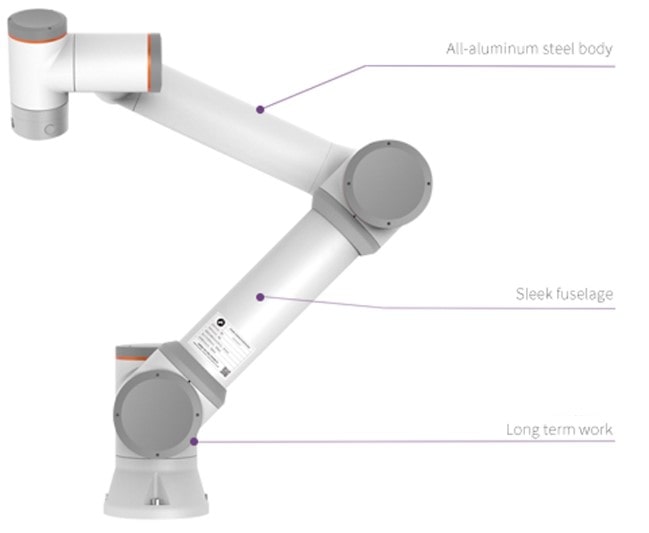

Robust and Durable Design
Durability is a key feature of the ACE10 robot, with an Ingress Protection (IP) classification of IP66, ensuring it can withstand tough industrial environments. Its noise level is also low, at <65dB, making it suitable for noise-sensitive environments.
Reliable and Efficient Operation
The ACE10 is also versatile in terms of mounting, with the ability to be installed in any orientation. It has a variety of input and output options, including 2 digital inputs, 2 digital outputs, 1 analog input, and 1 analog output, and is powered by a 24V/2A power supply.
Advanced HMI Options
The ACE10 comes equipped with a 10.1 inch teach pendant or mobile terminal application for easy programming and control. It is designed for easy integration and customization, with a variety of communication interfaces including TCP/IP, RS485, C\C++\Lua\Python\ROS.
Teaching Aid Software for Efficient Robot Programming

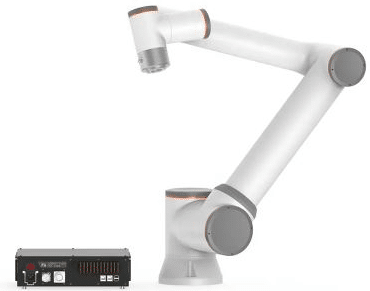

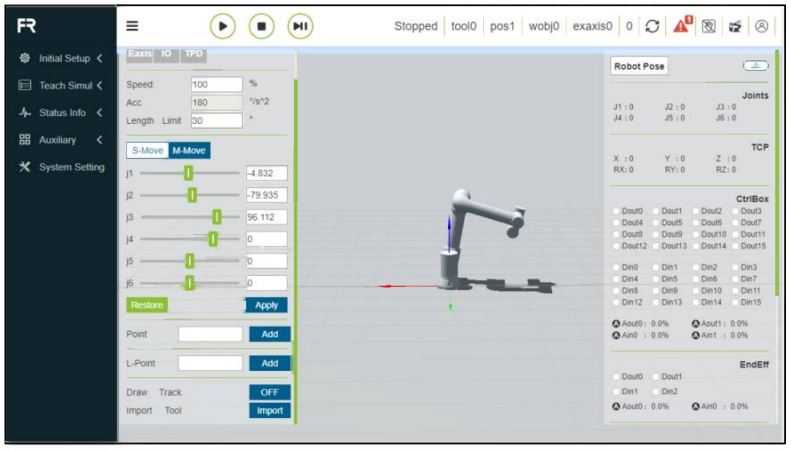

Our teaching aid software, developed for robots and running on our advanced operating system, offers a range of features for efficient programming. It includes the ability to write programs, display real-time position coordinates, simulate movements in 3D, control single-axis and linkage operations, view control IO status, and manage system information. The software is easy to begin using, requiring only control box activation and website login via credentials.

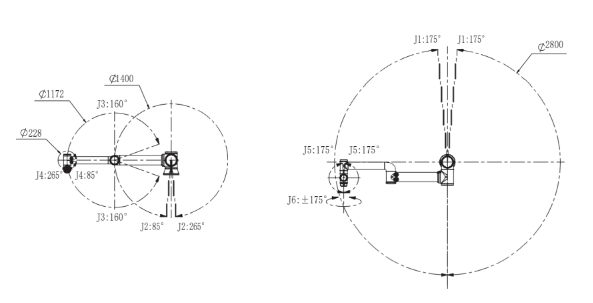

Range
| Specification | ACE 10 |
|---|---|
| Payload | 10 kg |

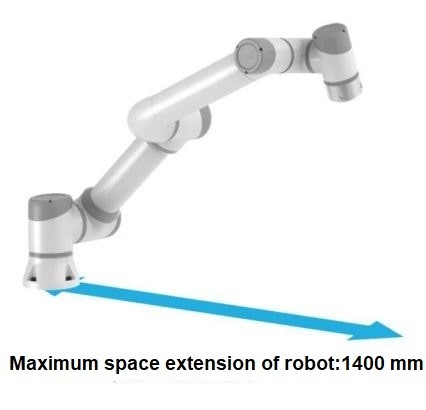

| Reach | 1400 mm |
| Range | 6 |
| Human Machine Interface (HMI) | 10.1 inch teach pendant or mobile terminal application |
| Repeatability | ±0.05 mm |

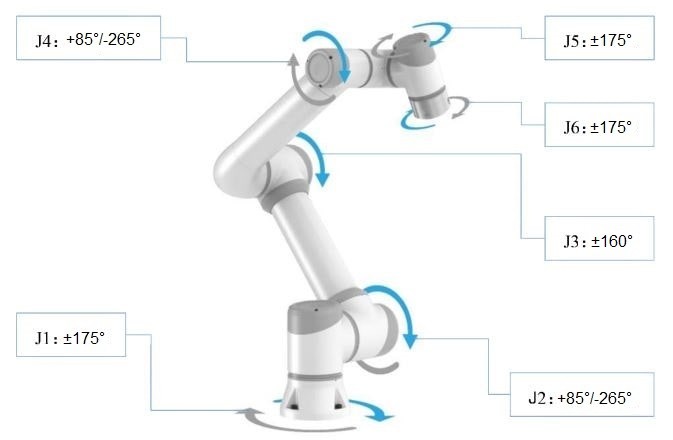

| Axis 1 Working Range | ±175° |
| Axis 2 Working Range | +85°/-265° |
| Axis 3 Working Range | ±160° |
| Axis 4 Working Range | +85°/-265° |
| Axis 5 Working Range | +85°/-265° |
| Axis 6 Working Range | ±175° |
| All Axes (1-6) Max Speed | ±180°/s |
| Tool Center Point (TCP) | 1 m/s |
| Speed Reducer | Harmonic speed reducer |
| Ingress Protection (IP) Classification | IP66 |
| Noise | < 65dB |
| Robot Mounting | Any orientation |
| Input / Output | DI 2, DO 2, AI 1, AO 1 |
