Description
ACE 3 Collaborative Robot Arm

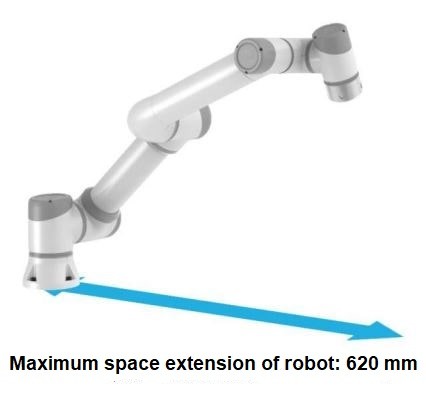

The ACE 3 Collaborative Robot comes with a payload capacity of 3 kg and a reach of 620 mm, the ACE 3 is a highly versatile and reliable choice for a wide range of industrial applications. Its 6-axis design allows for precise and agile movement, and its repeatability of ±0.02 mm ensures accuracy and consistency in every task.
Revolutionize Your Work With ACE 3 Collaborative Robot Arm
The ACE 3 Collaborative robot is a versatile solution that can improve efficiency and productivity in various industries. Its advanced capabilities can streamline production, improve logistics, and optimize automotive manufacturing. It is also precise when handling tasks in the food and medicine sectors. It can help businesses stay ahead in the changing retail world. Try integrating it into your operations to see the benefits.
Robust and Durable Design

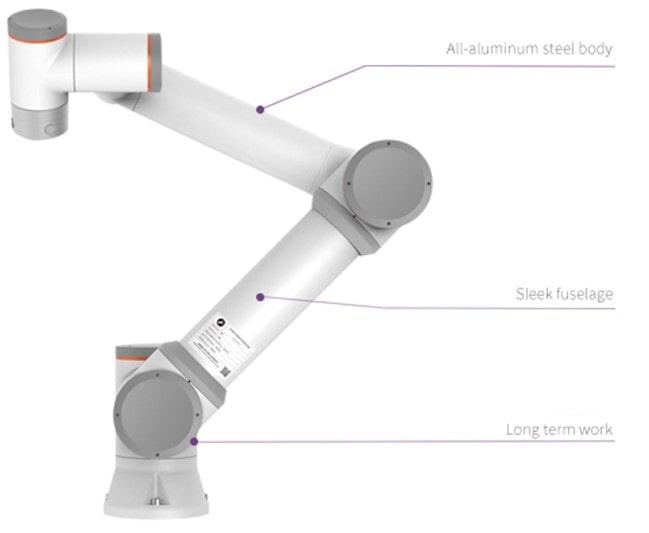

Built with durability in mind, the ACE 3 has an IP66 ingress protection rating and produces less than 65 dB of noise, making it suitable for use in a variety of environments. It can be mounted in any orientation, and its aluminum steel construction ensures long-lasting performance.
Easy Installation & Maintenance

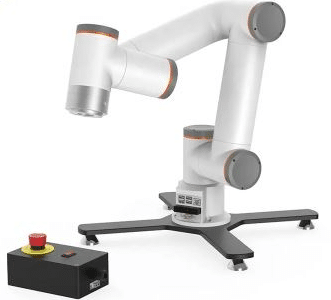

The ACE 3 can be easily installed on a table top, side mounted, or reverse mounted, making it suitable for use in a variety of setups. Its compact size and lightweight design make it easy to integrate into any workspace.
Advanced HMI Options
With a variety of input/output options, including AI 1, AO 1, DI 2, and DO 2, the ACE 3 can easily integrate into any existing system. Its interface and openness features, including TCP/IP and RS485 connectivity, allow for seamless communication with other devices.
The ACE 3 is equipped with multiple communication interfaces, including C\C++\Lua\Python\ROS, making it easy to program and control using a variety of languages and operating the ACE 3 is a breeze thanks to its advanced Human Machine Interface (HMI).
Teaching Aid Software for Efficient Robot Programming
Our teaching aid software, developed for robots and running on our advanced operating system, offers a range of features for efficient programming. It includes the ability to write programs, display real-time position coordinates, simulate movements in 3D, control single-axis and linkage operations, view control IO status, and manage system information. The software is easy to begin using, requiring only control box activation and website login via credentials.

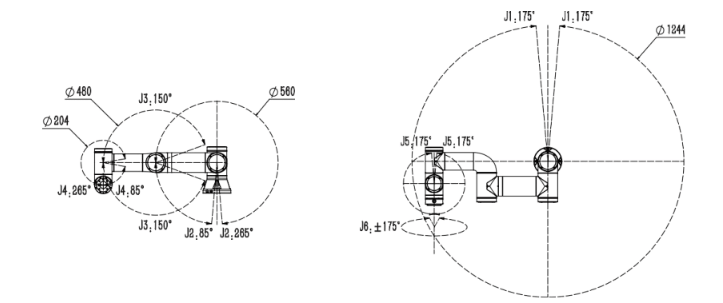

Range
| Specification | ACE 3 |
|---|---|
| Payload | 3 kg |
| Reach | 620 mm |
| Range | 6 |
| Human Machine Interface (HMI) | 10.1 inch teach pendant or mobile terminal application |
| Repeatability | ±0.02 mm |

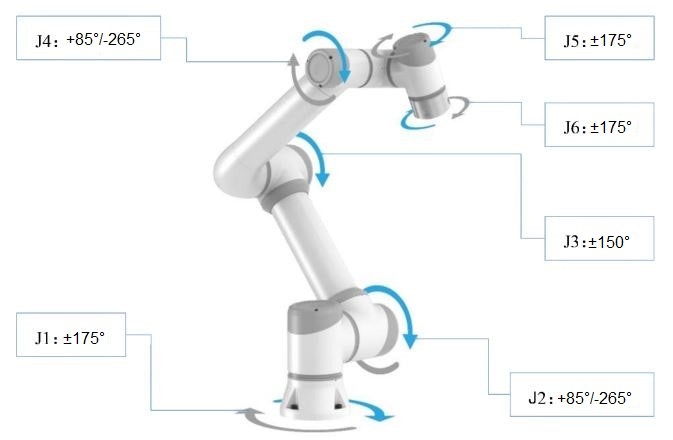

| Axis 1 Working Range | ±175° |
| Axis 2 Working Range | +85°/-265° |
| Axis 3 Working Range | ±150° |
| Axis 4 Working Range | +85°/-265° |
| Axis 5 Working Range | +85°/-265° |
| Axis 6 Working Range | ±175° |
| All Axes (1-6) Max Speed | ±180°/s |
| Tool Center Point (TCP) | 1 m/s |
| Speed Reducer | Harmonic speed reducer |
| Ingress Protection (IP) Classification | IP66 |
| Noise | < 65dB |
| Robot Mounting | Any orientation |
| Input / Output | DI 2, DO 2, AI 1, AO 1 |
