Description

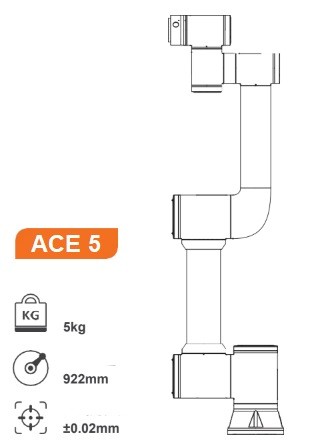

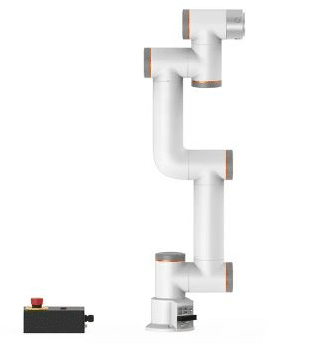

ACE 5 Collaborative Robot Arm
The ACE 5 is a versatile and reliable industrial robot, perfect for a wide range of applications. With a payload capacity of 5 kg and a reach of 922 mm, it can handle a variety of tasks efficiently and effectively. It has a total of 6 rotational degrees of freedom, giving it a wide range of motion and the ability to handle complex tasks. Its maximum speed of ±180°/s allows it to work quickly and efficiently.
Revolutionize Your Work With ACE 5 Collaborative Robot Arm
The ACE 5 Collaborative robot arm is a versatile solution that can improve efficiency and productivity in various industries. Its advanced capabilities can streamline production, improve logistics, and optimize automotive manufacturing. It is also precise when handling tasks in the food and medicine sectors. ACE 5 Collaborative robot arm can help businesses stay ahead in the changing retail world. Try integrating it into your operations to see the benefits.
Robust and Durable Design
The ACE 5 is built to withstand the rigors of industrial environments, with an IP66 ingress protection classification and a noise level of <65dB. It can be mounted in any orientation and is made of aluminum steel for added durability.
Easy Installation & Maintenance
The ACE 5 can be easily installed on a table top, side mounted, or reverse mounted. It has a mean time to repair failure of 2h, making it easy to maintain and keep up and running.
Advanced HMI Options
The ACE 5 has a range of input/output options, including DI 2, DO 2, AI 1, and AO 1. It also has a power supply of 24V/2A and interfaces with TCP/IP, RS485, and a variety of programming languages such as C++, Lua, Python, and ROS.
If you’re in need of a reliable and flexible industrial robot, look no further than the ACE 5. With its advanced HMI, flexible axis movement, and robust design, it’s the perfect solution for a wide range of applications.
Teaching Aid Software for Efficient Robot Programming
Our teaching aid software, developed for robots and running on our advanced operating system, offers a range of features for efficient programming. It includes the ability to write programs, display real-time position coordinates, simulate movements in 3D, control single-axis and linkage operations, view control IO status, and manage system information. The software is easy to begin using, requiring only control box activation and website login via credentials.

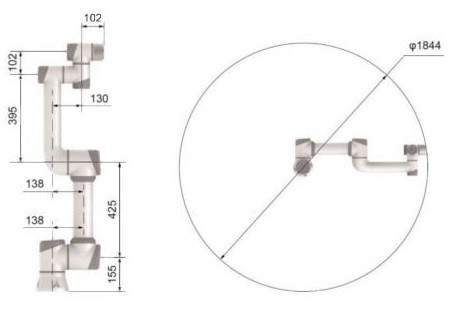

Range
| Specification | ACE 5 |
|---|---|
| Payload | 5 kg |
| Reach | 922 mm |
| Range | 6 |
| Human Machine Interface (HMI) | 10.1 inch teach pendant or mobile terminal application |
| Repeatability | ±0.02 mm |

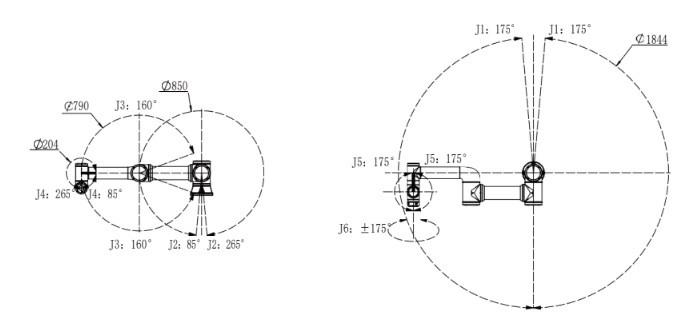

| Axis 1 Working Range | ±175° |
| Axis 2 Working Range | +85°/-265° |
| Axis 3 Working Range | ±160° |
| Axis 4 Working Range | +85°/-265° |
| Axis 5 Working Range | +85°/-265° |
| Axis 6 Working Range | ±175° |
| All Axes (1-6) Max Speed | ±180°/s |
| Tool Center Point (TCP) | 1 m/s |
| Speed Reducer | Harmonic speed reducer |
| Ingress Protection (IP) Classification | IP66 |
| Noise | < 65dB |
| Robot Mounting | Any orientation |
| Input / Output | DI 2, DO 2, AI 1, AO 1 |
